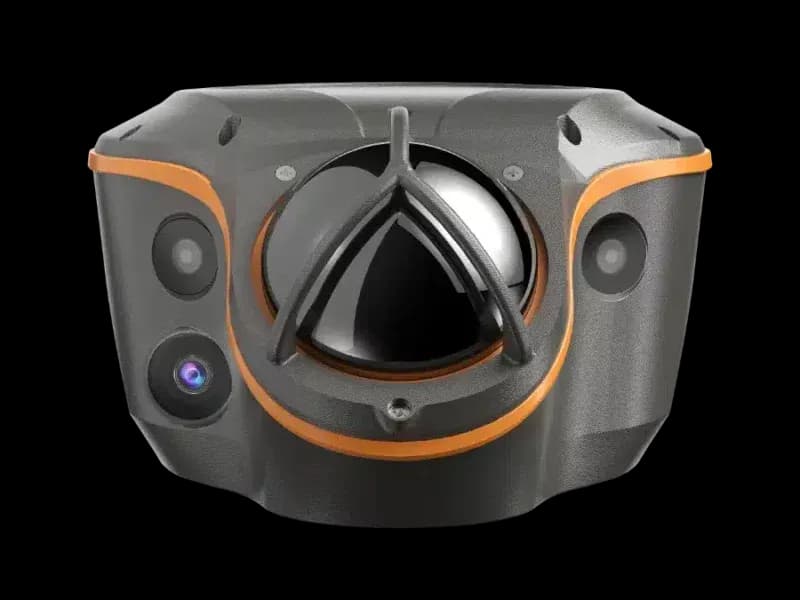

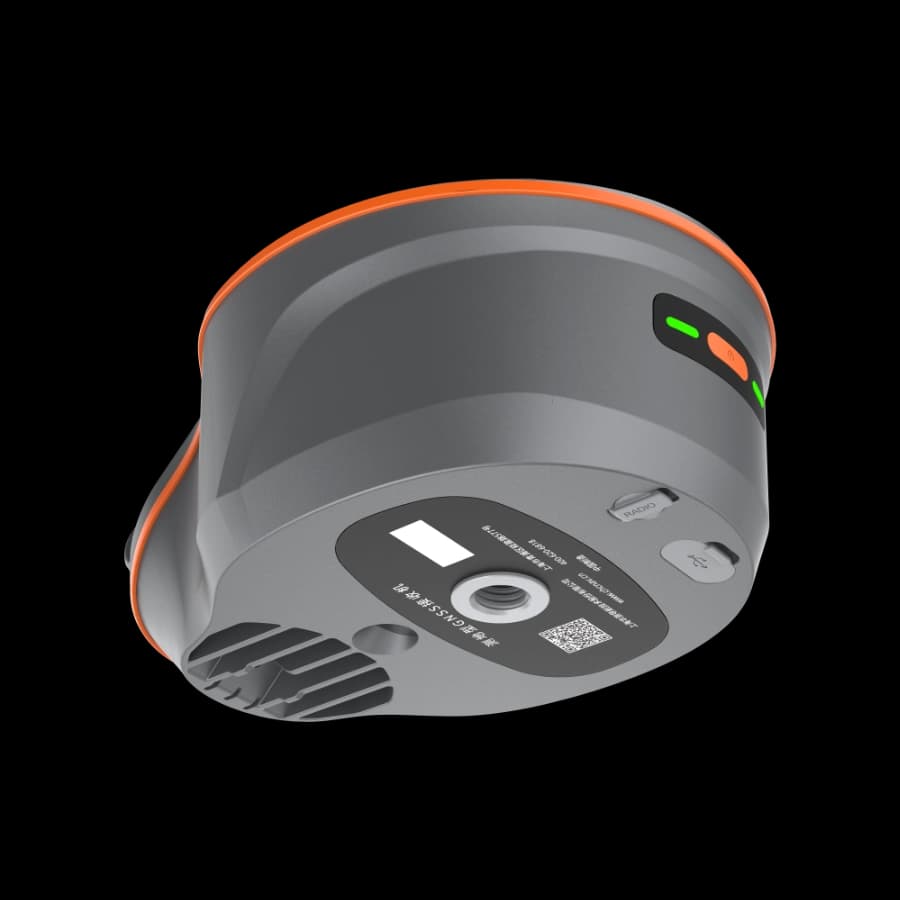

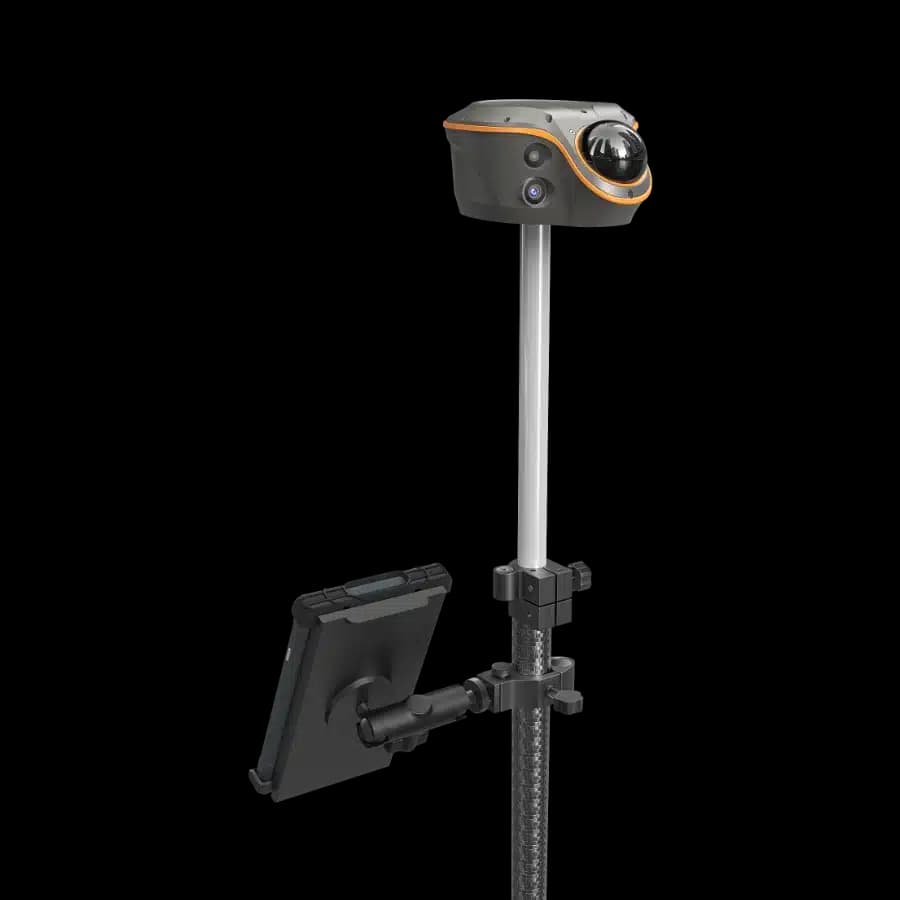

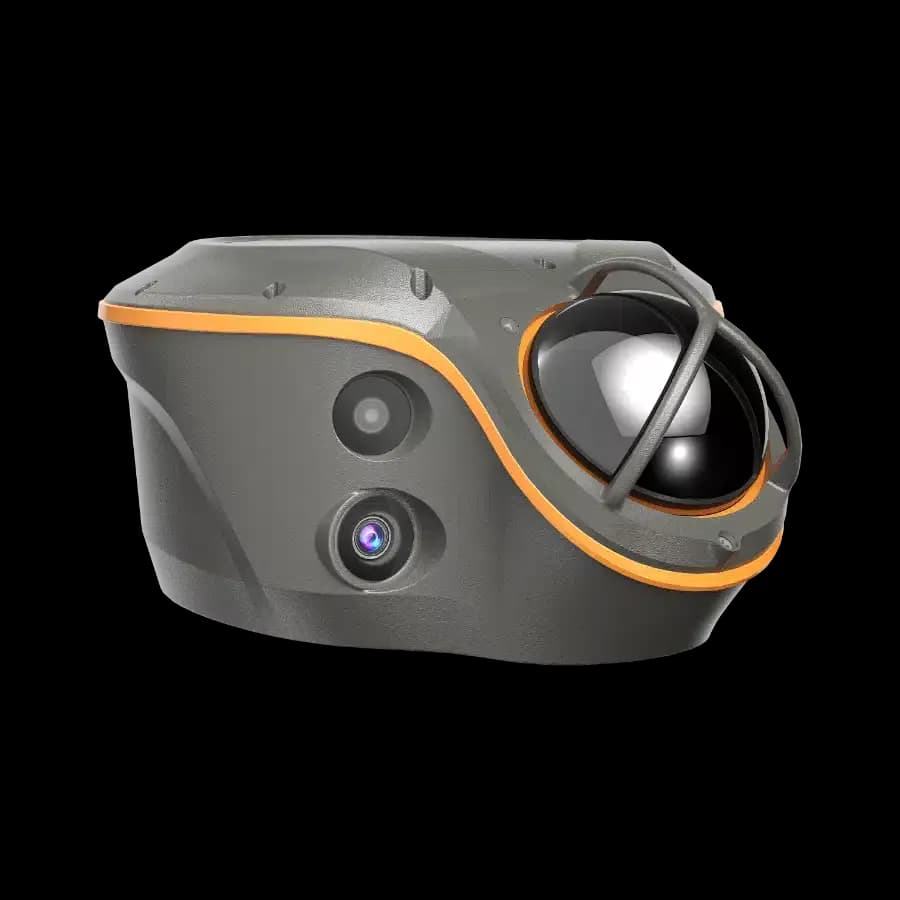

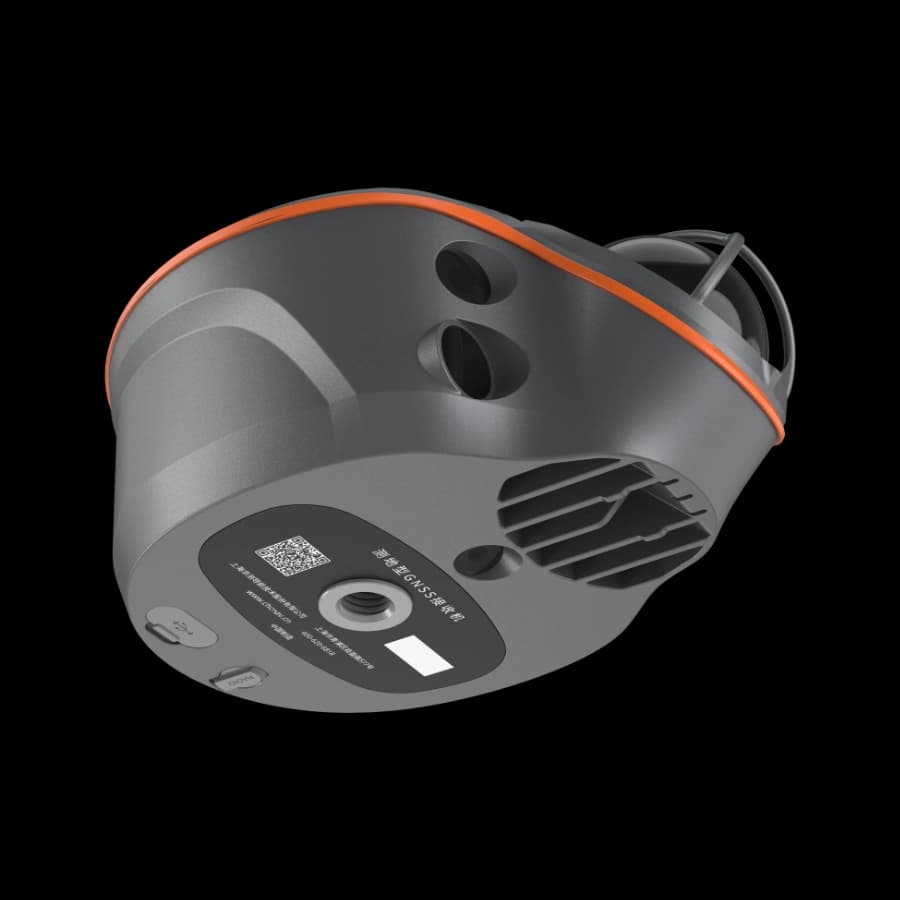

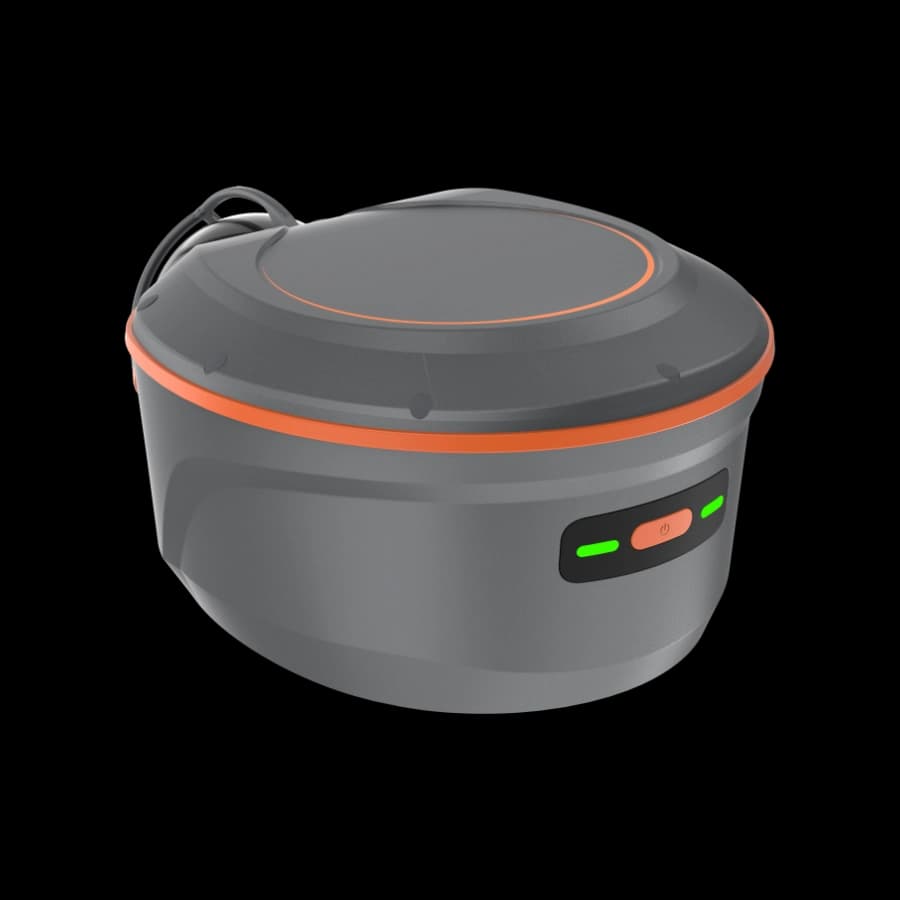

CHCNAV ViLi i100 Visual LiDAR GNSS

Name: CHCNAV ViLi i100 Visual LiDAR GNSS
SKU: prod_T97FimGuAy3YIN
Price: 12750 gbp
Availability: InStock

Price:

£12,750.00

exc. VAT

Download Datasheet

Download Datasheet

Product Overview

The ViLi i100 is CHCNAV’s flagship GNSS RTK receiver, designed for reliable performance in both outdoor and indoor environments. It combines advanced satellite filtering, the enhanced SFix 2.0 positioning engine, and integrated Vi-LiDAR technology to deliver accurate results where standard GNSS units often fail.

LT800 Tablet

The CHCNAV LT800 is a rugged Android tablet designed to increase the mobile workforce's efficiency and productivity in applications requiring meter-level GNSS positioning and uninterrupted performance. Portable, rugged and versatile, it enables GIS data collection, environmental surveys, landscaping, and other scenarios.

See the ViLi i100 in Action

Need implementation context? See the ViLi i100 solutions page for workflow-focused use cases.

Technical Specifications

GNSS Performance

Satellite SystemsFull GNSS

RTK Accuracy (H)0.8 cm

RTK Accuracy (V)1.5 cm

IMU Update Rate200 Hz

Positioning ModesCORS, UHF, PPP

Vi-LiDAR Technology

Point Frequency860,544 pts/sec

LiDAR Accuracy1.5 cm (1σ)

Range30m (10%) / 70m (80%)

Field of View360° H × 90° V

GNSS-Denied Accuracy5 cm within 20m

Physical

Dimensions208 × 162 × 95.5mm

Weight1.39 kg

Eye SafetyClass 1 (IEC 60825-1)

Camera4 cameras + 8MP telephoto

Earthwork Accuracy99.98%

Connectivity

WirelessBluetooth, Wi-Fi

Radio410-470 MHz (Rx)

PortsUSB 3.0 Type-C

UHF Antenna1x port

Visual StakeoutAR + CAD overlay

Why Choose the ViLi i100?

Works Where GPS Fails

Vi-LiDAR technology delivers 5cm accuracy even in GNSS-denied environments like urban canyons, under tree canopy, and near buildings.

50% Faster Stakeout

Dual cameras enable CAD overlay and AR visual stakeout, dramatically reducing time to locate points in the field.

Instant 3D Point Clouds

Generate 3D point clouds and perform earthwork calculations directly in the field with 860,000 points per second LiDAR.

Built for the Job Site

IP68 waterproof, 2m drop tested, and operates in temperatures from -20°C to +65°C with up to 24 hours battery life.

Frequently Asked Questions

How does it improve measurement efficiency?▼

With Vi-LiDAR, 4 cameras, and AR stakeout, the ViLi i100 speeds up surveying by up to 50%, enabling rapid contactless data capture in complex areas where traditional methods would be slower.

What positioning modes are supported?▼

The device supports CORS, UHF base-rover, and PPP modes plus visual stakeout via AR/CAD for flexible fieldwork setups. This gives you multiple options depending on your site conditions and accuracy requirements.

Does it support real-time earthwork volume measurements?▼

Yes, it enables instant cut/fill volume results on-site with 99.98% accuracy by scanning areas and defining boundaries without surface contact. This eliminates the need for post-processing in many applications.

How does it improve surveying in hard-to-reach areas?▼

Its Vi-LiDAR and 8MP telephoto camera let you measure targets up to 20m away with 5cm accuracy, without requiring precise aiming. This is ideal for dangerous or inaccessible locations.
